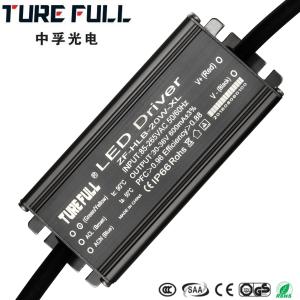

High Lumen Waterproof Electronic Led Driver 1 - 50 W For Led Outdoor Lighting

Name: High Lumen Waterproof Electronic Led Driver 1 50 W For Led Outdoor Lighting
Brand: ZhongFu
Price: 1 USD

China High Lumen Waterproof Electronic Led Driver 1 - 50 W For Led Outdoor Lighting wholesale

Place of Origin : Guangdong, China (Mainland)

Brand Name : ZhongFu

Model Number : ZF-HLB-20W-36V-743e

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : one piece in one small box,20-30 boxes in one carton

MOQ : 1 pcs

Price : Negotiable

Output Power : 1 - 50W

Output Type : Single

Input Voltage : 90-277V

Output Frequency : 47-63 HZ

surge current : 277VAC input Max 40A

working temperature : -40--+60 degree

IP grade : IP67

Surge : 4KV

Current Accuracy : +/-3%

Certificate : CE,ROHS,TUV,SAA,FCC,CC

size : 95*42*28mm

Contact Now

High lumen outdoor waterproof 1-50W led driver for LED outdoor lighting

Features:

1. Universal input voltage(90-277V)

2. Output current and voltage can be customized

3. Support(1-10V/Pwm/resistance three-in-one online dimming

4. high PFC,low ripple

5. high efficiency(up to 93%)

6. protection design:OVP/OCP/SCP/OTP)

7. 5 years warranty

Parameters

Model No	ZF-HLB-20-36	ZF-HLB-30-36	ZF-HLB-36-36	ZF-HLB-40-36
output voltage	28-38V	28-38V	32-45V	28-38V
rated current	0.6A	0.9A	0.9A	1.2A
rated power	20W	30W	36W	40W
ripple	<5%
current accuracy	+/-3%
input voltage	90-277V
fruquency	47-63HZ
warranty	5 years warranty
size	954228mm	954228mm	1304432mm	1304432mm

Product Category

High Lumen Waterproof Electronic Led Driver 1 - 50 W For Led Outdoor Lighting

LED street lighting driver(10-400W)

UFO LED high bay light driver(60-240W)

LED grow lighting driver

constant voltage led driver(10-300W)

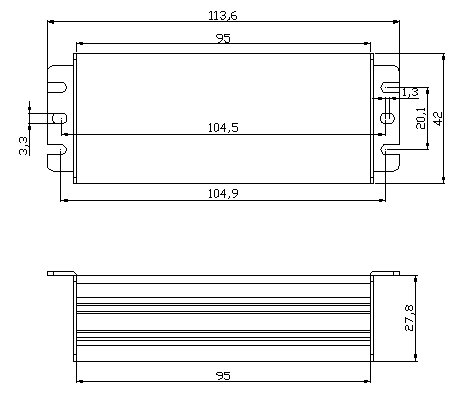

Dimension and inner Picture

High Lumen Waterproof Electronic Led Driver 1 - 50 W For Led Outdoor Lighting
